hot sell for nails coil galvanized wire binding wire bwg18
YW08
minimum order
5 tons
Supply Ability
400.0tons / Day
Country of Origin
TIANJIN
Quantity

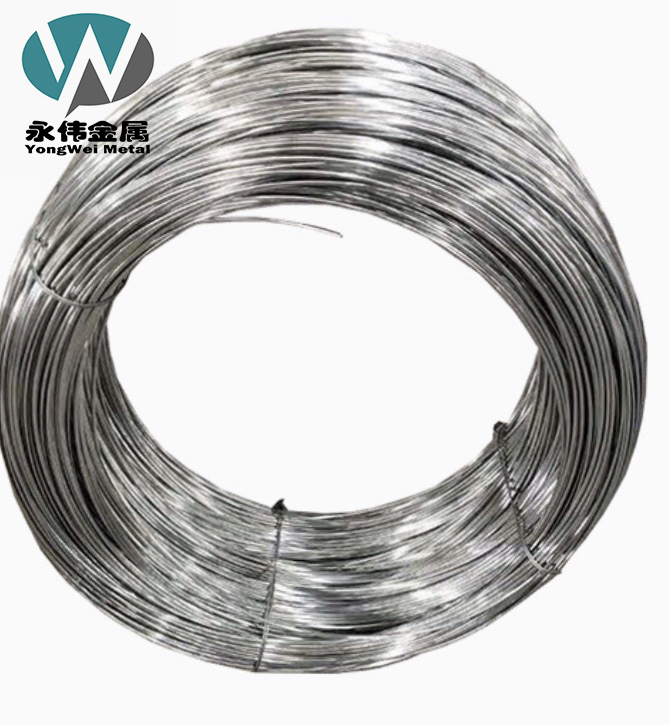

- Product name:Galvaized Iron Wire,18 gauge wire galvanized
- Material:Low Carbon Steel Wire
- Color:Customized
- Tensile strength:300-1500N/mm2
- Coil weight:1kg-1000kgs/coil
- Zinc coating:Customized
- Wire diameter:0.2mm-8mm 18 gauge wire galvanized
- MOQ:1Ton
- Package:Plastic Film + Hessian(woven) Bag
- Brand:OEM 18 gauge wire galvanized
- Surface Treatment:galvanized
- Type:Loop Tie Wire,18 gauge wire galvanized
- Function:Binding Wire,18 gauge wire galvanized
- Processing Service:Welding
- Processing Service:Bending
- Processing Service:Punching
- Processing Service:Decoiling
- Processing Service:Cutting
- Delivery Time:15-21 days
- Place of Origin:CN;HEB
- Brand Name:Yongwei

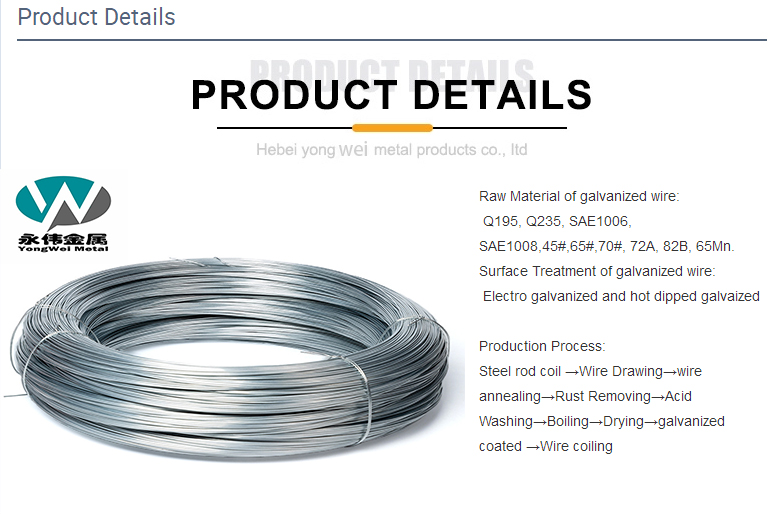

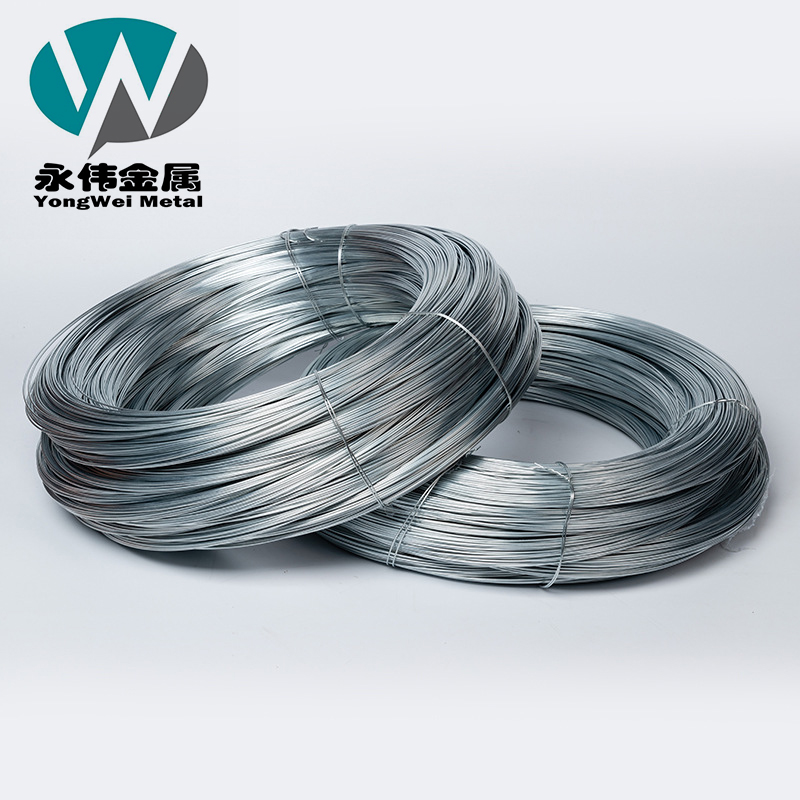

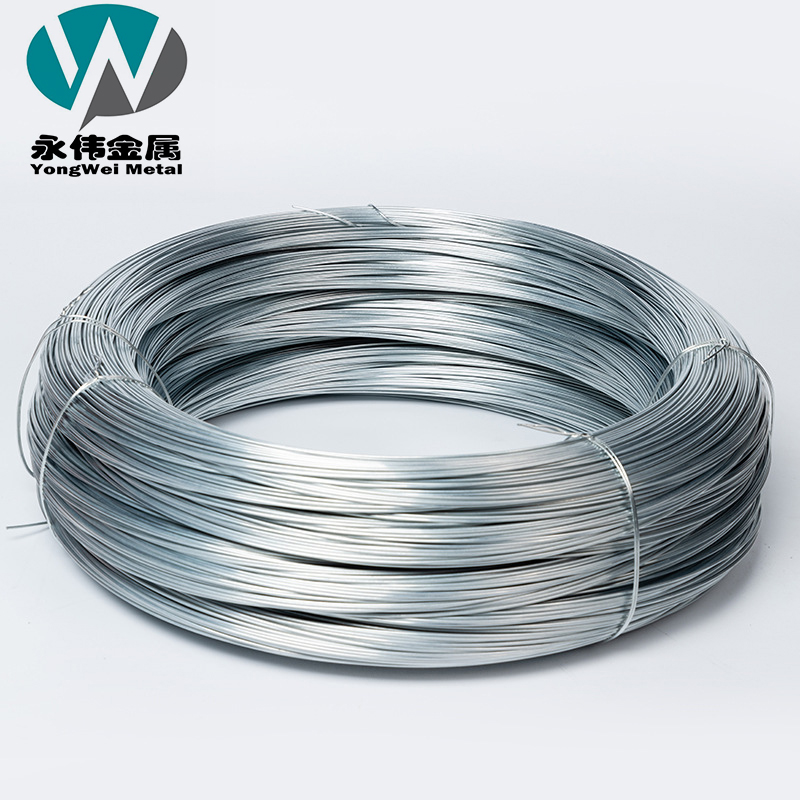

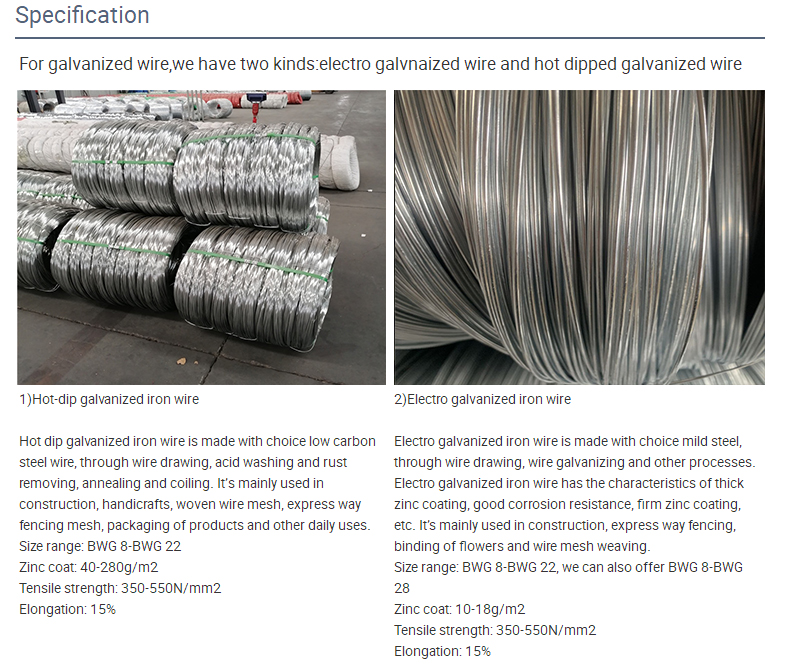

For galvanized wire,we have two kinds:electro galvnaized wire and hot dipped galvanized wire
（1）Hot-dip galvanized iron wire 18 gauge wire galvanized
Hot dip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust
removing,annealing and coiling. It’s mainly used in construction, handicrafts, woven wire mesh, express way fencing mesh,
packaging of products and other daily uses.
Size range: BWG 8-BWG 22 18 gauge wire galvanized
Zinc coat: 40-280g/m2
Tensile strength: 350-550N/mm2
Elongation: 15%
Hot dip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust
removing,annealing and coiling. It’s mainly used in construction, handicrafts, woven wire mesh, express way fencing mesh,
packaging of products and other daily uses.
Size range: BWG 8-BWG 22 18 gauge wire galvanized
Zinc coat: 40-280g/m2
Tensile strength: 350-550N/mm2
Elongation: 15%
2)Electro galvanized iron wire 18 gauge wire galvanized
Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro
galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc. It’s mainly
used in construction, express way fencing, binding of flowers and wire mesh weaving.
Size range: BWG 8-BWG 22, we can also offer BWG 8-BWG 28,18 gauge wire galvanized
Zinc coat: 10-18g/m2
Tensile strength: 350-550N/mm2
Elongation: 15%
Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro
galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc. It’s mainly
used in construction, express way fencing, binding of flowers and wire mesh weaving.
Size range: BWG 8-BWG 22, we can also offer BWG 8-BWG 28,18 gauge wire galvanized
Zinc coat: 10-18g/m2
Tensile strength: 350-550N/mm2
Elongation: 15%

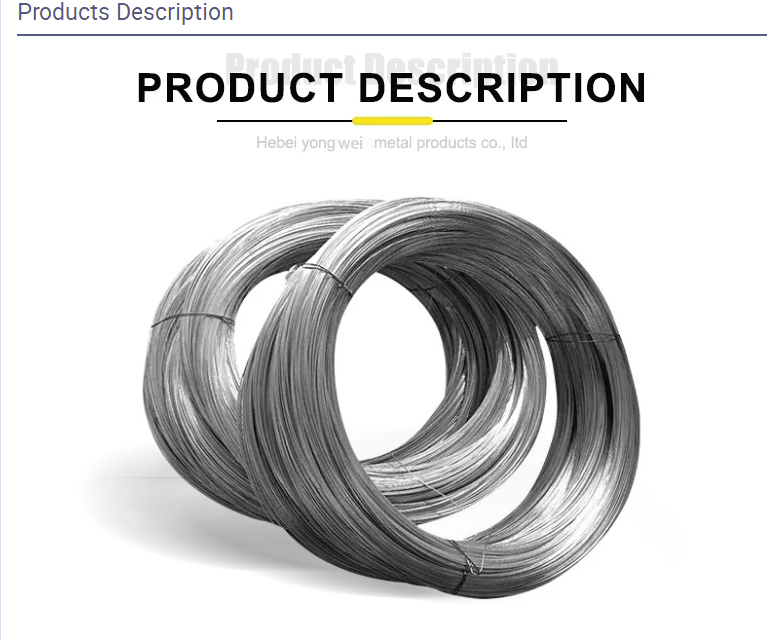

Product Description
Galvanized wire, steel wire, annealed wire | ||||||
wire gauge size | SWG(mm) | BWG(mm) | metric(mm) | |||
8 | 4.06 | 4.19 | 4.00 | |||
9 | 3.66 | 3.76 | - | |||
10 | 3.25 | 3.40 | 3.50 | |||
11 | 2.95 | 3.05 | 3.00 | |||
12 | 2.64 | 2.77 | 2.80 | |||
13 | 2.34 | 2.41 | 2.50 | |||
14 | 2.03 | 2.11 | - | |||
15 | 1.83 | 1.83 | 1.80 | |||
16 | 1.63 | 1.65 | 1.65 | |||
17 | 1.42 | 1.47 | 1.40 | |||
18 | 1.22 | 1.25 | 1.20 | |||
19 | 1.02 | 1.07 | 1.00 | |||
20 | 0.91 | 0.89 | 0.90 | |||
21 | 0.81 | 0.813 | 0.80 | |||
22 | 0.71 | 0.711 | 0.70 | |||
Size | 0.20mm-6.00mm,18 gauge wire galvanized |
Coil weight | 25KG-800kg |
Zinc coating | 25g/m2-366g/m2 |
Tensile strengh | 350-500MPA, 650-900mpa, ＞1200Mpa |
Low price PVC COATED Surface Treatment and Weaving Wire Function pvc coated wire | ||
Material | Q195 low carbon steel wire | |
T/S | 350--550 MPA (SOFT) | |
Elongation | 8%-15% | |
Package | 5KGS--1000KGS per coil 25KGS&50KGS coil as standard wrapped Weave bag, hessian cloth, carton or pallet | |
Feature | (1)Without splice (2)Diameter tolerance : ±0.01mm (3)Full weight without tolerance (4)Strong breaking strength ,soft ,easy to use (5)colorful,beauty | |

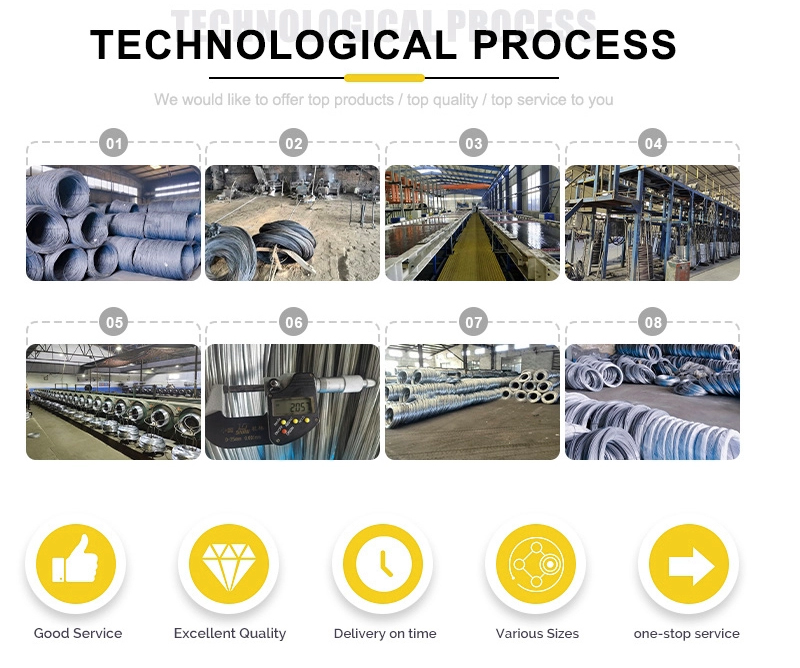

Process：
Wire Rod➨ Drawn Wire ➨Annealed➨ Drawn Wire ➨Annealed➨ Wire Coiling➨ Galvanized wire
➨ Pvc coated➨Packing

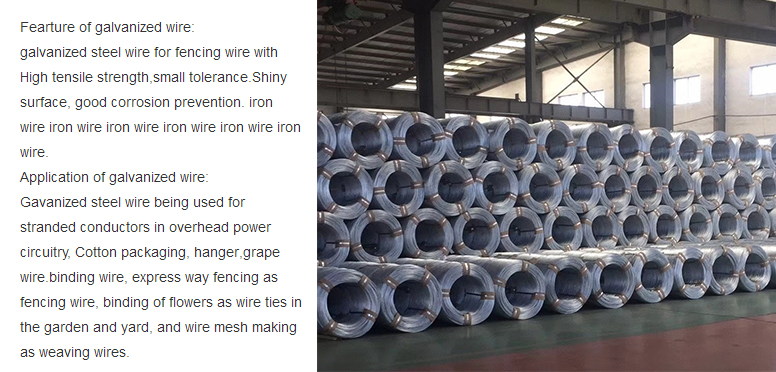

Usage:mainly used in construction, weaving wire mesh, products packing and binding materials
2.Wire gauge:0.7mm-2.5mm
3.Wire length:6m-500m/coil
4.Weight:0.5kg-5kg/coil
5.Surface treatment:Galvanized,PVC coated,stainless steel,cooper coated,brass
6.Advantage:mini coil for easy handing
6.Advantage:mini coil for easy handing
7.Packing:packed in carton or packed in carton then pallet.
Ideal for gardening and other binding applications,other sizes can be available upon customers' demands.
Ideal for gardening and other binding applications,other sizes can be available upon customers' demands.
18 gauge wire galvanized
PVC coated wire, also called plastic coated wire, after high temperature dissolution cooled solid PVC particles uniformly wrapped in high-quality black iron wire and galvanized wire through advanced equipment.
PVC coated wire is mainly divided into PVC coated wire and PE coated wire.PVC Coating has strong adhesion, good gloss, uniform coating, high toughness, good corrosion resistance, bright color.There are more than twenty color , and most common color is dark green, grass green or black.
PVC coated wire is mainly divided into PVC coated wire and PE coated wire.PVC Coating has strong adhesion, good gloss, uniform coating, high toughness, good corrosion resistance, bright color.There are more than twenty color , and most common color is dark green, grass green or black.
Our wire diameter range of products is wide the inner diameter can be done from 0.25mm to 5.0mm. After coating, the outer diameter can reach 0.2MM to 8mm, packing we can do spool wire, small coil wire and big coil wire. Due to the quality of our raw materials and imported raw environmentally friendly PVC outer perfect combination in the same product, it has better anti-oxidation,anticorrosion, anti-cracking effect anti-cracking effect, and the service life increased 1.5 times. Our plant has strict management rules, so our cost is 10% lowers than same industry.

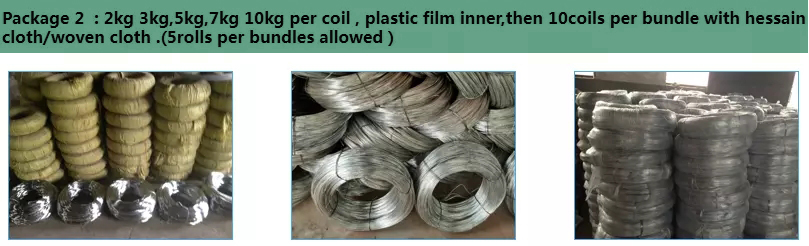

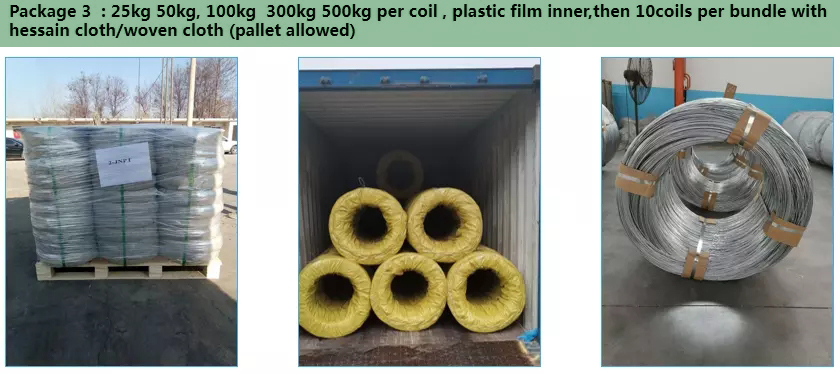

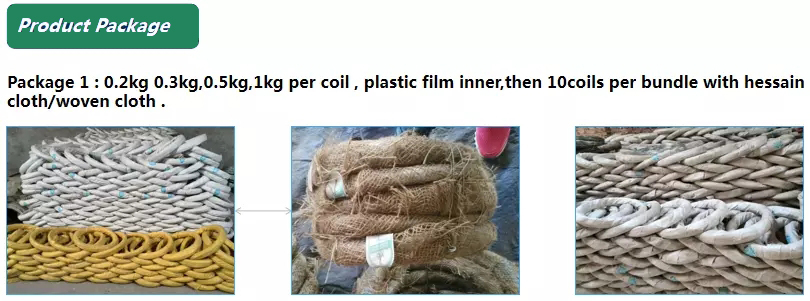

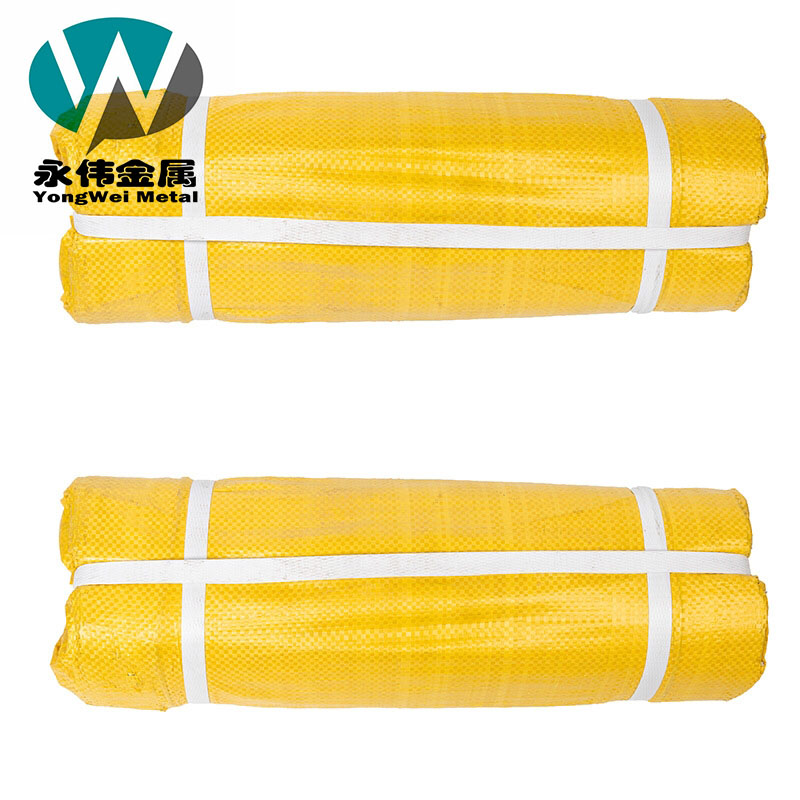

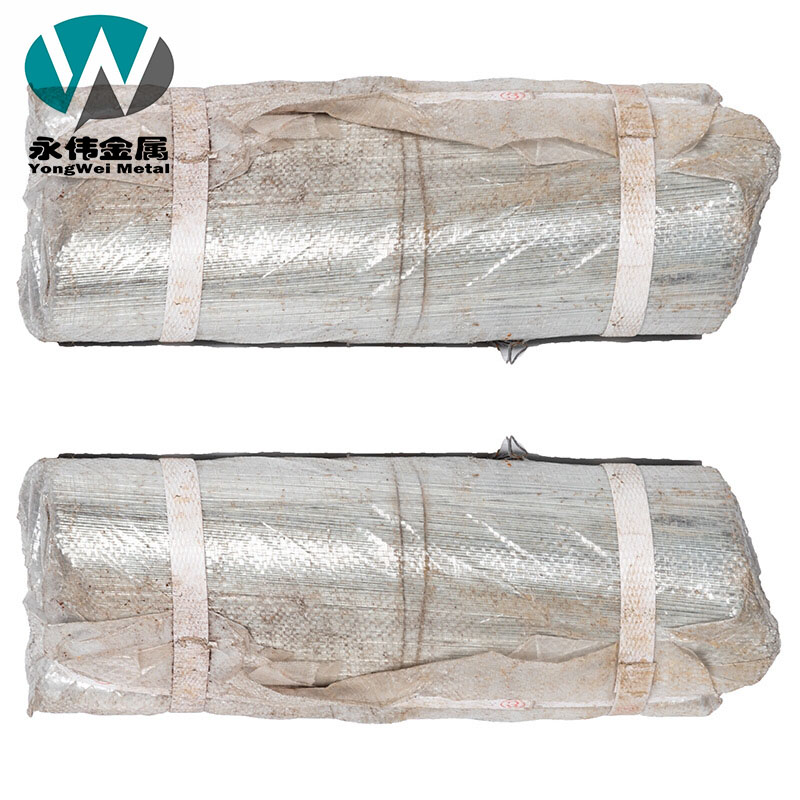

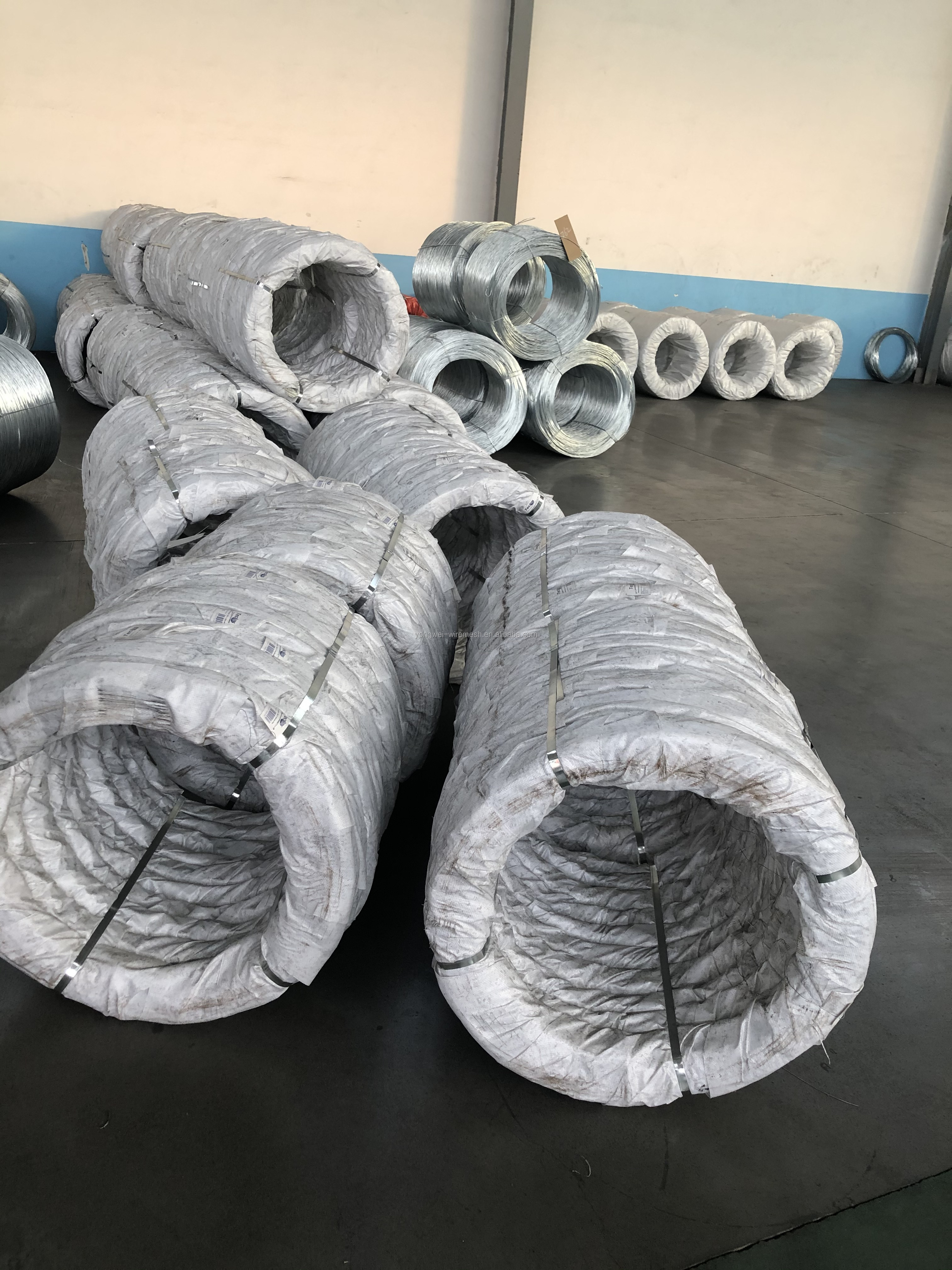

Package:
18 gauge wire galvanized
Wrapped plastic film and then nylon woven bag or hessian cloth
1.Plastic shrink wrapping
2.Wood pallet
3.Carton
Wrapped plastic film and then nylon woven bag or hessian cloth
1.Plastic shrink wrapping
2.Wood pallet
3.Carton
Bearing steel wire is mainly used to make bearing rolling bodies. Because of its variety, it basically adopts English
specifications. Hot-rolled wire has limited specifications and low dimensional accuracy, which can not meet the requirements of rolling bodies. Cold-drawn steel wire has high dimensional accuracy, and it is very convenient to change specifications. Compared with hot-rolled wire rod, the uniformity of internal structure is fundamentally improved, so almost all kinds of rolling bodies use cold-drawn steel wire as raw material.
specifications. Hot-rolled wire has limited specifications and low dimensional accuracy, which can not meet the requirements of rolling bodies. Cold-drawn steel wire has high dimensional accuracy, and it is very convenient to change specifications. Compared with hot-rolled wire rod, the uniformity of internal structure is fundamentally improved, so almost all kinds of rolling bodies use cold-drawn steel wire as raw material.
1.Usage
Used in communication equipment,medical devices,weaving wire mesh,brush,tightrope,filtered mesh,high pressure pipe,architecture
craftwork, etc.
Used in communication equipment,medical devices,weaving wire mesh,brush,tightrope,filtered mesh,high pressure pipe,architecture
craftwork, etc.
2.According to different tech of galvanizing, galvanized wire could be divided into two main types:
a. Electro Galvanized Wire.
Size : 8# --38# (0.15mm --3.8mm )
b. Hot dipped Galvanized Wire
Size : 8# --36# (0.19mm --3.8mm )
a. Electro Galvanized Wire.
Size : 8# --38# (0.15mm --3.8mm )
b. Hot dipped Galvanized Wire
Size : 8# --36# (0.19mm --3.8mm )
3. Feature:
It has the characteristics of good corrosion resistance,can offer excellent flexility and plasticity and can be used widely.
It has the characteristics of good corrosion resistance,can offer excellent flexility and plasticity and can be used widely.
4.Zinc coated:
10g-60g/m2 for Electro galvanized wire
60g/m2-200g/m2 for Hot-dipped galvanized wire
10g-60g/m2 for Electro galvanized wire
60g/m2-200g/m2 for Hot-dipped galvanized wire
Packing & Delivery 18 gauge wire galvanized
18 gauge wire galvanized

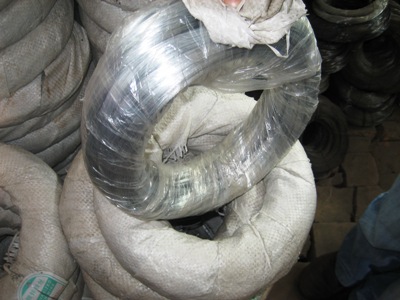

Packaging Details:
18 gauge wire galvanized
Plastic inside and hessian cloth outside or according to customers requirement for building material iron
twisted soft annealed black iron binding wire
Welcome to inquiry, we will give you a satisfactory price, and provide the best quality products and the best service. About the price, you can send me a private message to discuss it in detail.Looking forward to anyone.
Welcome to China, you can contact me.
twisted soft annealed black iron binding wire
Welcome to inquiry, we will give you a satisfactory price, and provide the best quality products and the best service. About the price, you can send me a private message to discuss it in detail.Looking forward to anyone.
Welcome to China, you can contact me.
